Tapered Roller Bearings

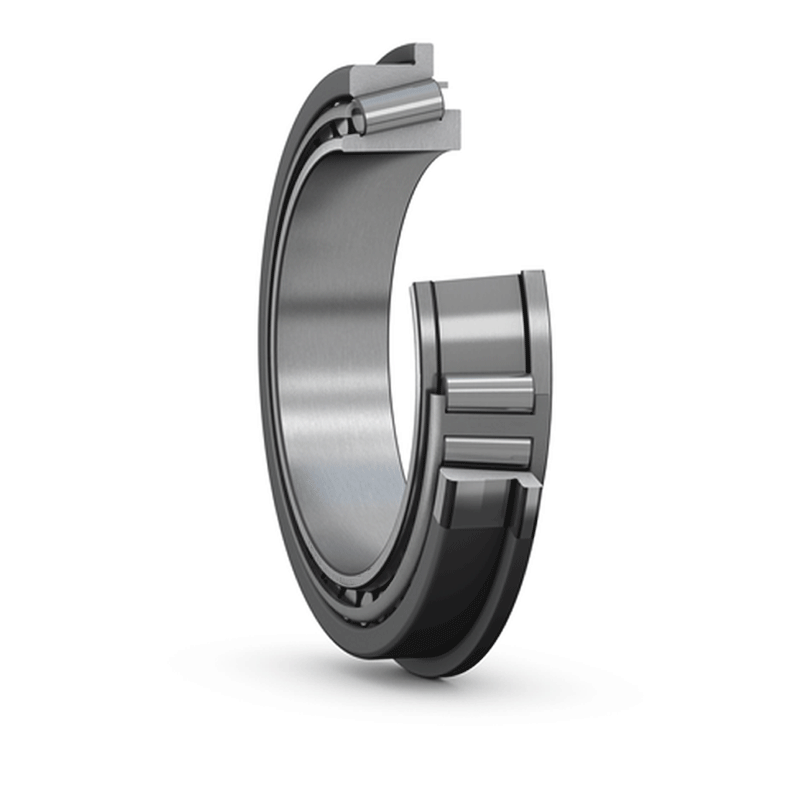

32008XR-Single row tapered roller bearing with flanged outer ring

Libeat Bearings

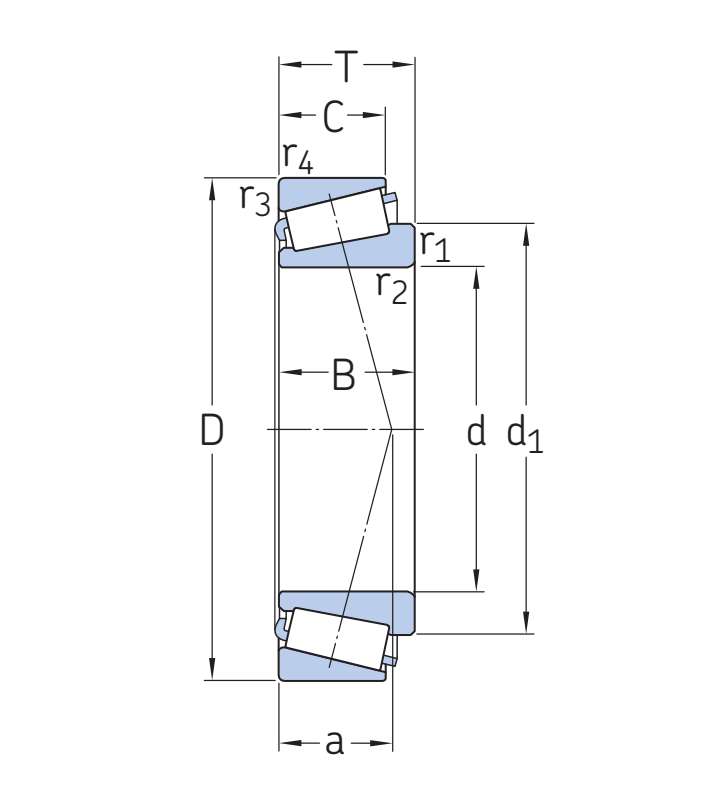

Main Dimensions & Performance Data

Model

 32008XR

d

 40 mm

od

 68 mm

T

 19 mm

C

 64.7 kN

C0

 71 kN

Pu

 7.65 Pu

reference speed

 7500 r/min

limit speed

 9500 r/min

weight

 0.29 kg

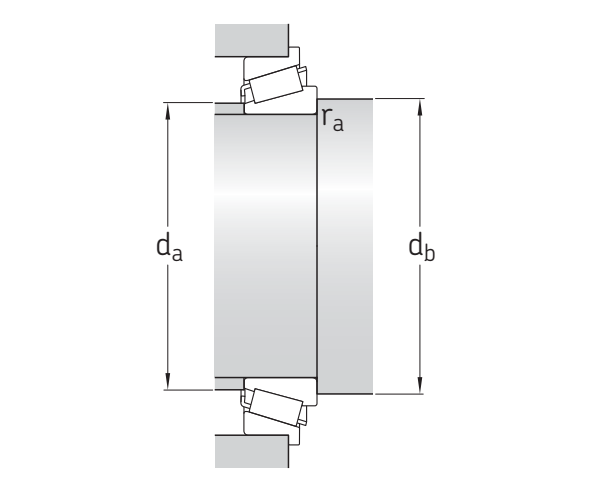

Mounting dimensions

d1

 54.7

D

 72

B

 19

C

 14.5

C1

 3.5

r1,2min

 1

r3,4min

 1

a

 14

da max

 46

dbmin

 47.5

ramax

 1

e

 0.37

Y

 1.6

Y0

 0.9
